Partners & transfers

The node initiates transfers as well as accepting them. Outgoing transfers are driven from the Send / Receive tab, the transfer API, or the CLI.

Remote servers

Define the servers this node connects out to in the Remote servers tab (/api/v1/servers on the transfer API): host, port, server id (PI 4), transport (plain / TLS, optional transport-length header), and optionally a partner id, password and pre-connection credentials. You can test connectivity and mark a default server.

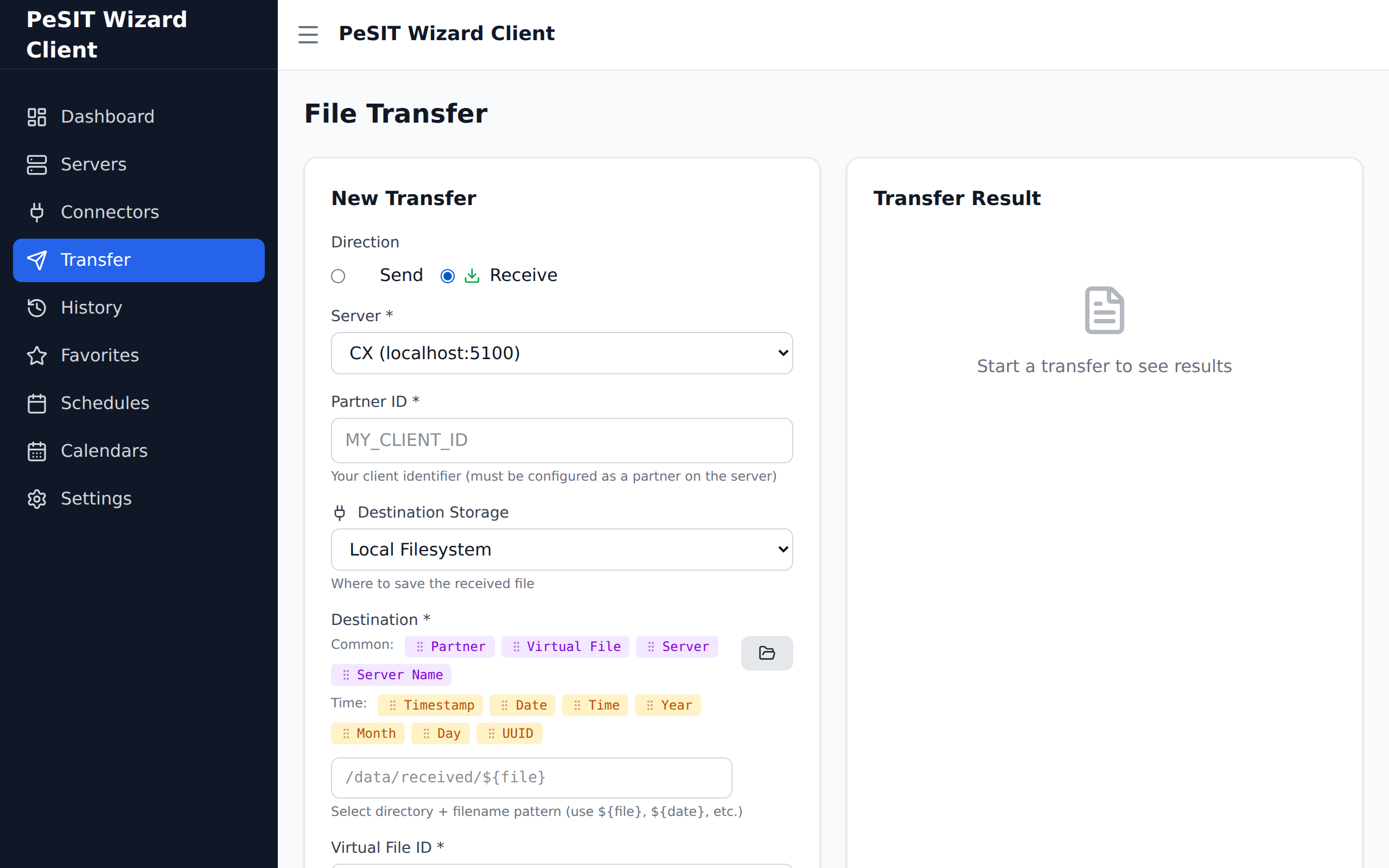

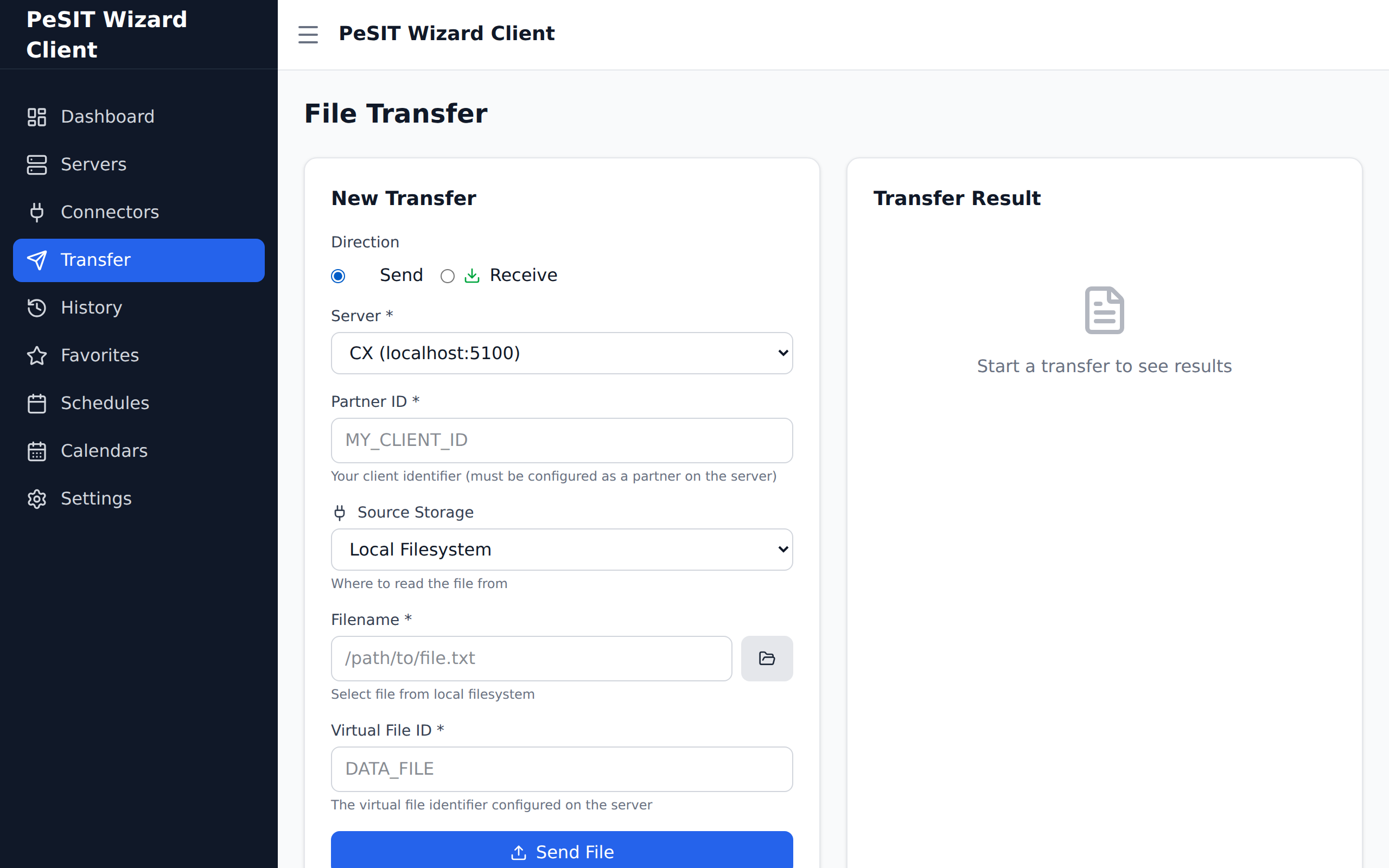

Sending and receiving

From the Send / Receive tab (or POST /api/v1/transfers/send|receive): pick a remote server, a partner id (PI 3), local and virtual file names, and options — synchronisation points, compression, text mode, EBCDIC, and an optional label (PI 37) and free message (PI 99).

# send a file
curl -s -H 'Content-Type: application/json' \
  http://localhost:9081/api/v1/transfers/send -X POST \
  -d '{"server":"bank-a","partnerId":"PWSRV01","filename":"/data/send/sepa.dat","remoteFilename":"PAYMENTS"}'

The Transfers tab shows inbound and outbound records with live status, progress and cancel / retry. Interrupted transfers can be resumed from their last checkpoint.

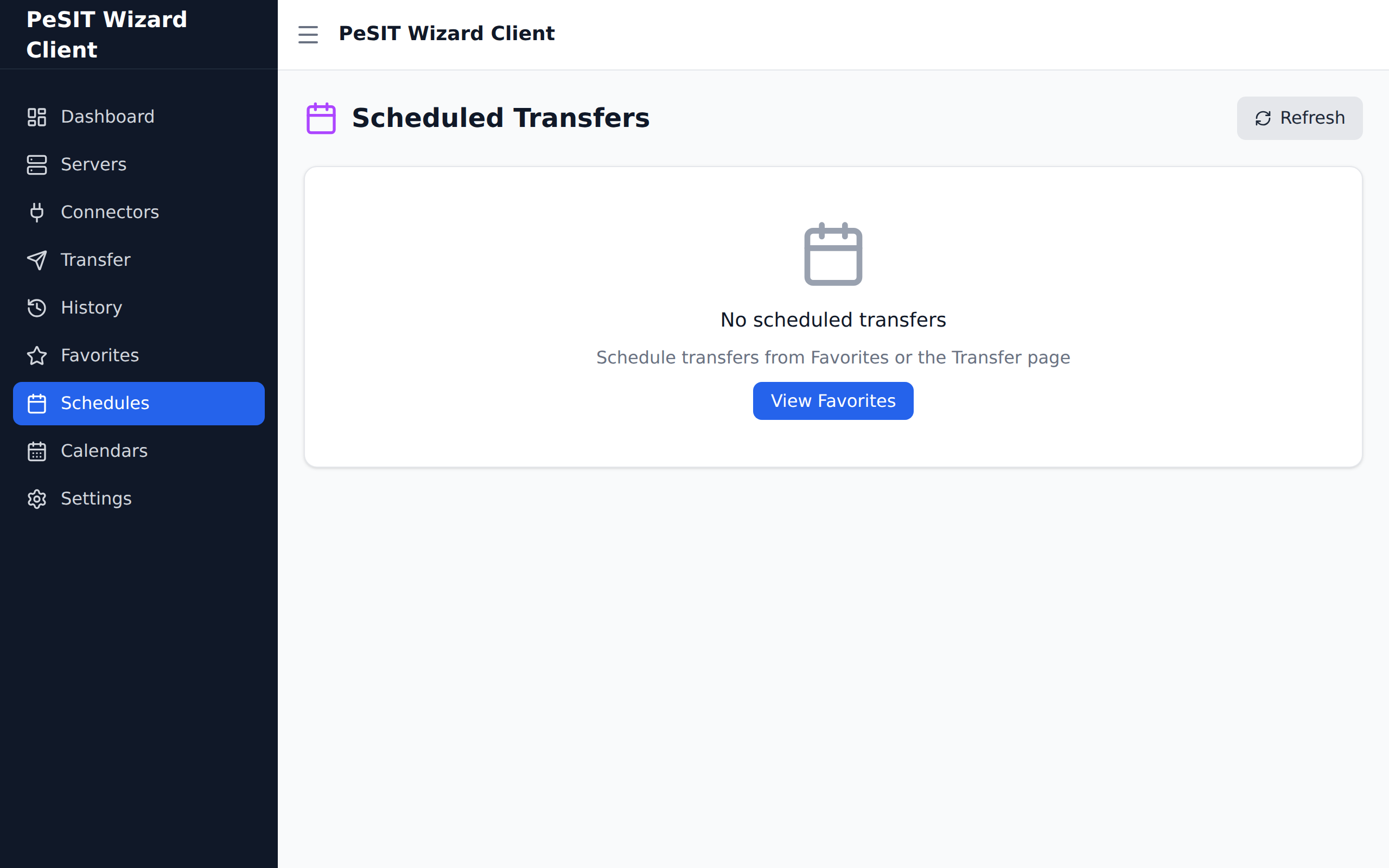

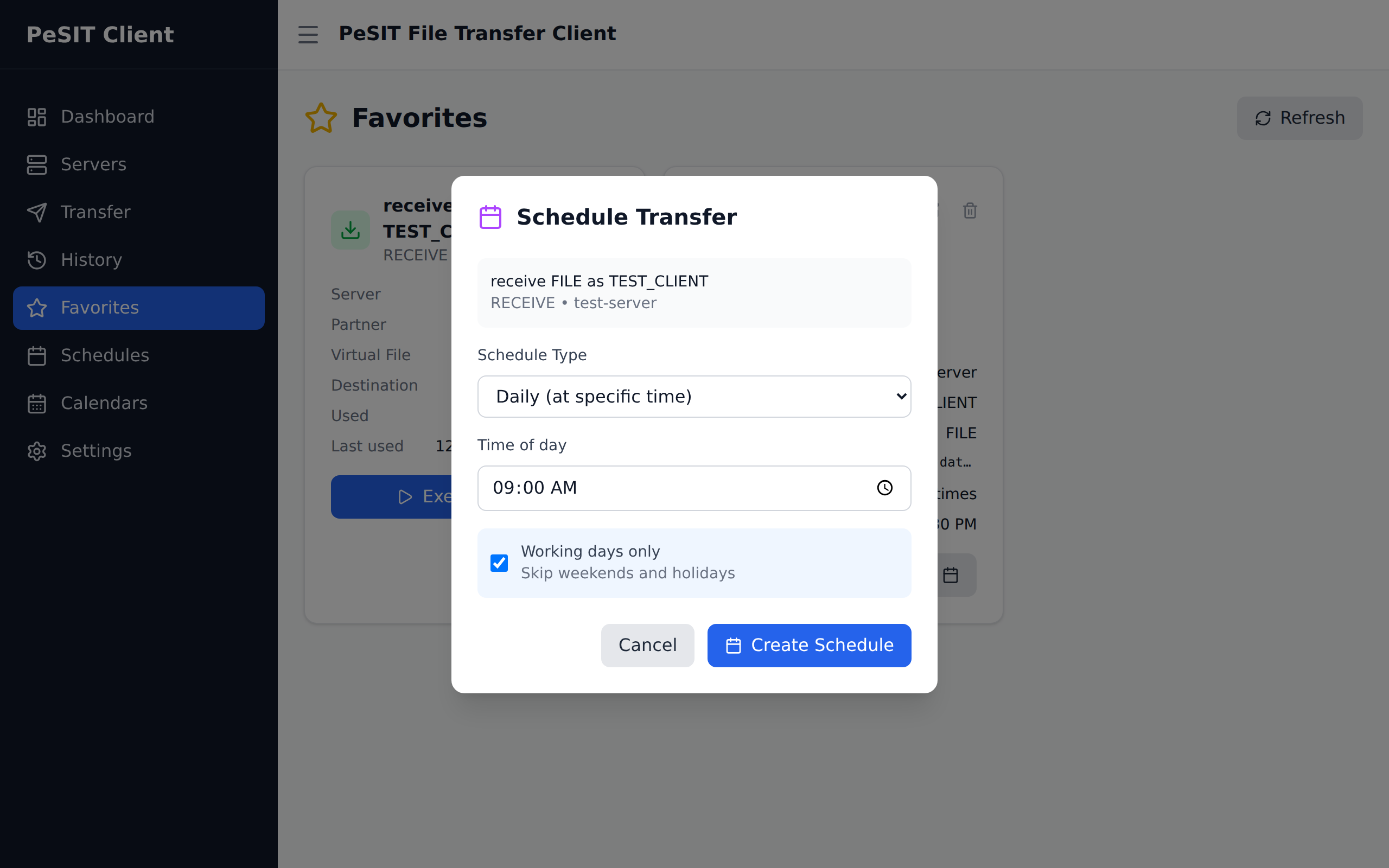

Scheduled transfers

Recurring send / receive jobs are managed in the Schedules tab (/api/v1/schedules). Each job runs on a fixed interval or a cron expression (5, 6 or 7 fields, e.g. 0 2 * * * for daily at 02:00). Across a cluster they replicate and are distributed by ownership, so a due job fires exactly once and the load spreads.

One-shot CLI

The same binary can run a single transfer without the running node's API:

pesitwizard send    --host cx --port 5000 --server-id CETOM1 --partner PWSRV01 file.dat --remote PWRECV
pesitwizard receive --host cx --port 5000 --server-id CETOM1 --partner PWSRV01 PWSEND --file out.dat
pesitwizard message --host cx --port 5000 --server-id CETOM1 --partner PWSRV01 "hello" --reply
