Security

Overview

PeSIT Wizard server security relies on multiple layers:

1. PeSIT Authentication: Partner ID/password credentials
2. TLS Encryption: PeSIT-E over TLS 1.2/1.3
3. API Authentication: Basic Auth or JWT
4. Network: Firewall, VPN, IP whitelisting

PeSIT Authentication

Partner Configuration

Each partner must be registered with an ID and password:

curl -X POST http://localhost:8080/api/v1/config/partners \
  -u admin:admin \
  -H "Content-Type: application/json" \
  -d '{
    "partnerId": "BANK_XYZ",
    "password": "ComplexPassword123!",
    "enabled": true
  }'

Password Policy

Recommendations:

• Minimum 12 characters
• Mix of uppercase/lowercase/numbers/symbols
• Rotate every 90 days
• No reuse of the last 5 passwords

TLS and mTLS Encryption

PeSIT Wizard supports two TLS security modes:

Mode	Description	Use Case
Simple TLS	Only the server presents a certificate	Trusted partners on a secure network
mTLS	Both client AND server present a certificate	Production, high security

Architecture with Private CA

PeSIT Wizard integrates a private Certificate Authority (CA) to simplify certificate management:

                    ┌─────────────────────┐
                    │   Private PeSIT CA   │
                    │   (pesit-ca)         │
                    └──────────┬──────────┘
                               │ signs
              ┌────────────────┼────────────────┐
              ▼                ▼                ▼
     ┌─────────────┐   ┌─────────────┐   ┌─────────────┐
     │ Server Cert │   │ Client Cert │   │ Client Cert │
     │  PeSIT      │   │  Partner A  │   │  Partner B  │
     └─────────────┘   └─────────────┘   └─────────────┘

Private CA Management (Administration)

Security

The private CA is a critical security component. Its access must be strictly limited to security administrators. In production, consider using an HSM (Hardware Security Module) to protect CA keys.

Separation of Responsibilities Principle

┌─────────────────────────────────────────────────────────────────┐
│              Private CA (Security Administration)                │
│  - Access restricted to security administrators                 │
│  - One-time CA initialization                                   │
│  - Signing server and client certificates                       │
│  - Secure key storage (HSM recommended in production)           │
└─────────────────────────────────────────────────────────────────┘
                              │ distributes certificates
           ┌──────────────────┼──────────────────┐
           ▼                                     ▼
┌─────────────────────┐              ┌─────────────────────┐
│  PeSIT Server       │              │  PeSIT Client       │
│  - Receives keystore│              │  - Receives keystore│
│    signed by CA     │              │    signed by CA     │
│  - CA truststore    │              │  - CA truststore    │
└─────────────────────┘              └─────────────────────┘

CA Initialization (one time only)

The security administrator initializes the CA via the server API:

# Initialize the CA (admin access required)
curl -X POST http://localhost:8080/api/v1/certificates/ca/initialize \
  -u admin:admin

Certificate Generation

The administrator generates certificates for each server and client:

# Certificate for a server
curl -X POST "http://localhost:8080/api/v1/certificates/ca/partner/SERVER_PROD/generate" \
  -u admin:admin \
  -d "commonName=pesit.example.com&purpose=SERVER&validityDays=365"

# Certificate for a client/partner
curl -X POST "http://localhost:8080/api/v1/certificates/ca/partner/BANK_XYZ/generate" \
  -u admin:admin \
  -d "commonName=bank-xyz.example.com&purpose=CLIENT&validityDays=365"

Secure Distribution

The administrator then distributes:

1. To the server: Its keystore + the CA truststore
2. To clients: Their keystore + the CA certificate (for their truststore)

---

Client-Side TLS Configuration

Client User Interface

TLS configuration is accessible per server in the PeSIT Wizard client. Each server configured with TLS enabled has a TLS button for importing certificates.

In the server list, click the TLS button for the relevant server:

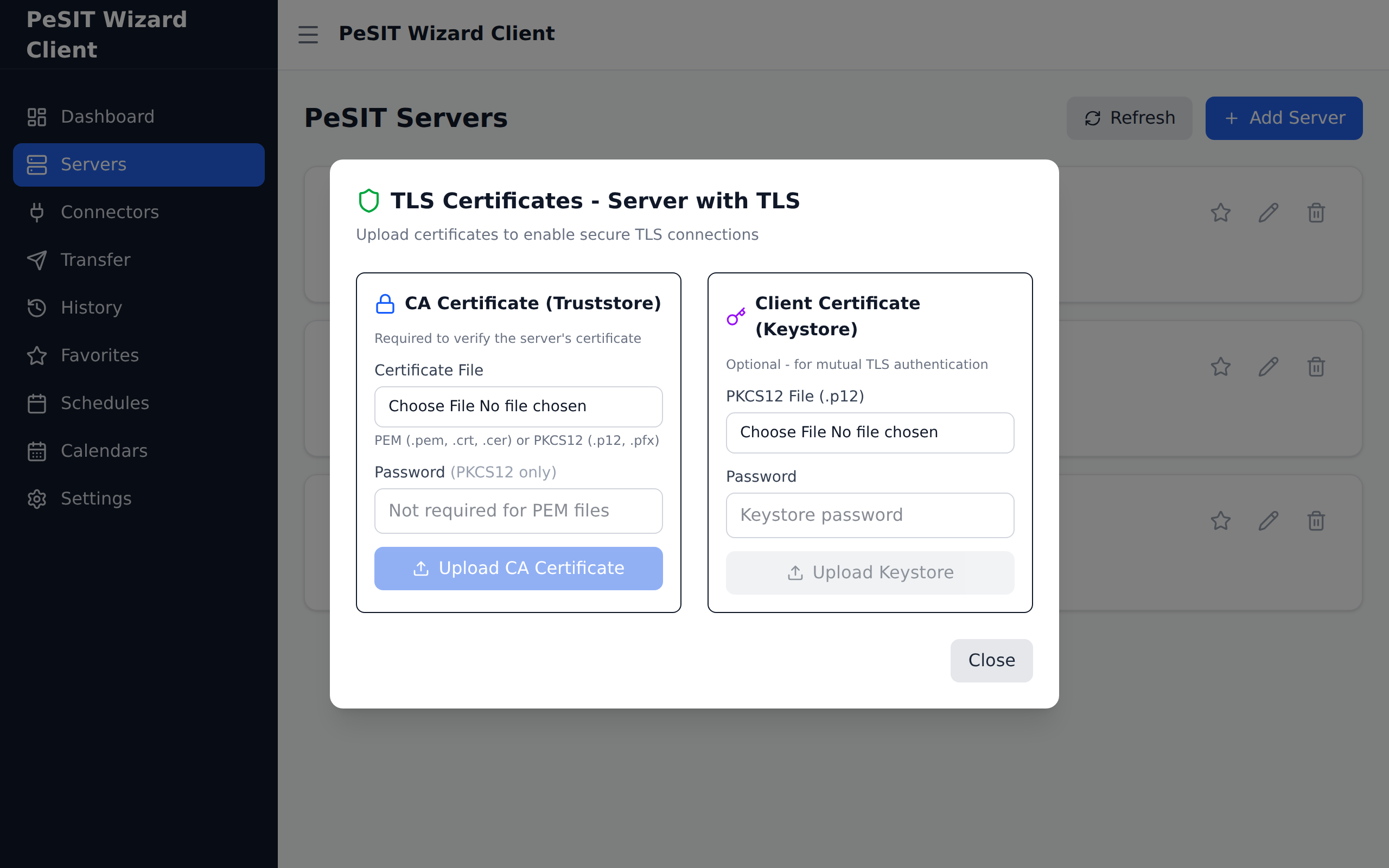

1. Import the CA Certificate (Truststore)

To trust the PeSIT server, import the CA certificate:

1. Click Import CA Certificate
2. Select the CA file received from the administrator (.pem, .crt, .p12, or .jks)
3. Enter the password if necessary

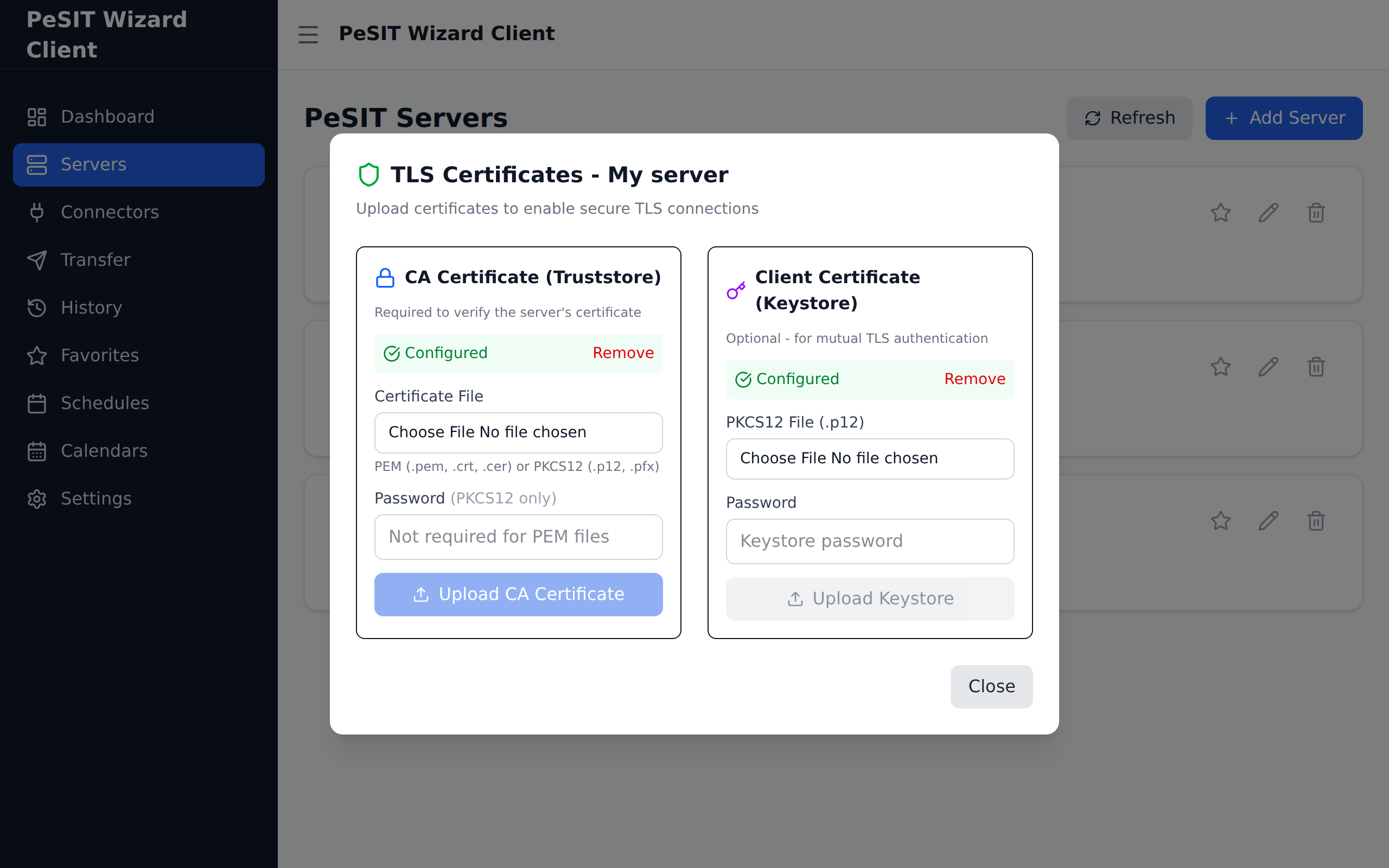

2. Import the Client Certificate (Keystore)

For mTLS authentication, import your client certificate:

1. Click Import Client Certificate
2. Select the keystore file received from the administrator (.p12 or .jks)
3. Enter the keystore password

Note

The client certificate import button is only active after importing the CA Certificate.

3. TLS Status

Once the certificates are imported, the TLS status is visible in the configuration:

---

Server-Side mTLS Configuration

Configuration File

pesitwizard:
  ssl:
    enabled: true
    keystore-name: default-keystore       # Server certificate
    truststore-name: pesit-ca-truststore  # CA for validating clients
    client-auth: NEED                     # NONE, WANT, NEED
    protocol: TLSv1.3
    verify-certificate-chain: true

  ca:
    enabled: true
    ca-keystore-name: pesit-ca-keystore
    ca-truststore-name: pesit-ca-truststore
    ca-keystore-password: ${PESIT_CA_PASSWORD:changeit}

Client Authentication Modes

Mode	Behavior
NONE	Simple TLS, no client certificate required
WANT	Server requests a certificate but accepts connections without one
NEED	Mandatory mTLS - the client MUST present a valid certificate

---

Client Guide: Obtaining a Signed Certificate

PeSIT clients must obtain a certificate signed by the server's CA to connect via mTLS.

Option 1: Certificate Generated by the Administrator (recommended)

The PeSIT Wizard server administrator generates a certificate for the partner via the interface:

1. Administrator: Generates the certificate via the UI (see "Generate a certificate for a partner" section)
2. Administrator: Exports and transmits the keystore to the client securely
3. Client: Imports the received keystore into their configuration

Option 2: CSR Provided by the Client (more secure)

If the client prefers to generate their own private key (more secure):

Client Side: Generate a Key and a CSR

# 1. Generate the private key (the client keeps it secret)
openssl genrsa -out client-key.pem 2048

# 2. Generate the Certificate Signing Request (CSR)
openssl req -new \
  -key client-key.pem \
  -out client.csr \
  -subj "/CN=bank-xyz.example.com/O=Bank XYZ/C=FR"

# 3. Display the CSR in base64 to send to the server
cat client.csr

Server Side: Sign the CSR via the UI

The administrator signs the CSR via the API:

1. Paste the CSR received from the client
2. Select Client (mTLS) as purpose
3. Click Sign CSR
4. Download the signed certificate and send it to the client

Alternatively, via API:

curl -X POST "http://localhost:8080/api/v1/certificates/ca/sign" \
  -u admin:admin \
  -d "csrPem=$(cat client.csr)" \
  -d "purpose=CLIENT" \
  -d "validityDays=365" \
  -d "partnerId=BANK_XYZ"

Client Side: Create the Keystore

# 1. Save the signed certificate
echo "-----BEGIN CERTIFICATE-----
MIID....
-----END CERTIFICATE-----" > client-cert.pem

# 2. Download the CA certificate (for the truststore)
curl -o ca-cert.pem http://localhost:8080/api/v1/certificates/ca/certificate \
  -u admin:admin

# 3. Create the PKCS12 keystore with the key and certificate
openssl pkcs12 -export \
  -in client-cert.pem \
  -inkey client-key.pem \
  -out client-keystore.p12 \
  -name client \
  -password pass:changeit

# 4. Create the truststore with the CA certificate
keytool -importcert \
  -alias pesit-ca \
  -file ca-cert.pem \
  -keystore client-truststore.p12 \
  -storetype PKCS12 \
  -storepass changeit \
  -noprompt

---

Client Guide: Import the Server Certificate

For the client to trust the PeSIT Wizard server, it must import the CA certificate into its truststore.

Download the CA Certificate via the UI

The CA certificate can be downloaded via the API:

curl -o pesit-ca.pem \
  http://localhost:8080/api/v1/certificates/ca/certificate \
  -u admin:admin

Import into a Java Truststore (PKCS12)

# Create or update the truststore
keytool -importcert \
  -alias pesit-wizard-ca \
  -file pesit-ca.pem \
  -keystore truststore.p12 \
  -storetype PKCS12 \
  -storepass changeit \
  -noprompt

# Verify the import
keytool -list -keystore truststore.p12 -storepass changeit

Import into a JKS Truststore (legacy)

keytool -importcert \
  -alias pesit-wizard-ca \
  -file pesit-ca.pem \
  -keystore truststore.jks \
  -storetype JKS \
  -storepass changeit \
  -noprompt

Java Client Configuration

// Load the keystore (client certificate)
KeyStore keyStore = KeyStore.getInstance("PKCS12");
keyStore.load(new FileInputStream("client-keystore.p12"), "changeit".toCharArray());

// Load the truststore (server CA certificate)
KeyStore trustStore = KeyStore.getInstance("PKCS12");
trustStore.load(new FileInputStream("client-truststore.p12"), "changeit".toCharArray());

// Create the SSLContext
KeyManagerFactory kmf = KeyManagerFactory.getInstance("SunX509");
kmf.init(keyStore, "changeit".toCharArray());

TrustManagerFactory tmf = TrustManagerFactory.getInstance("SunX509");
tmf.init(trustStore);

SSLContext sslContext = SSLContext.getInstance("TLSv1.3");
sslContext.init(kmf.getKeyManagers(), tmf.getTrustManagers(), new SecureRandom());

---

Verify a Certificate

Verify that a Certificate is Signed by the CA

curl -X POST "http://localhost:8080/api/v1/certificates/ca/verify" \
  -u admin:admin \
  -d "certificatePem=$(cat client-cert.pem)"

Response if valid:

{
  "message": "Certificate is valid and signed by our CA"
}

Verify a Certificate with OpenSSL

# Verify the chain of trust
openssl verify -CAfile pesit-ca.pem client-cert.pem

# Display certificate details
openssl x509 -in client-cert.pem -text -noout

---

CA Endpoint Summary

Endpoint	Method	Description
/api/v1/certificates/ca/initialize	POST	Initialize the private CA
/api/v1/certificates/ca/certificate	GET	Download the CA certificate (PEM)
/api/v1/certificates/ca/csr	POST	Generate a CSR
/api/v1/certificates/ca/sign	POST	Sign a CSR
/api/v1/certificates/ca/partner/{id}/generate	POST	Generate a complete certificate for a partner
/api/v1/certificates/ca/verify	POST	Verify a certificate

---

Complete mTLS Workflow

┌──────────────────────────────────────────────────────────────────┐
│                      PESIT WIZARD SERVER                         │
├──────────────────────────────────────────────────────────────────┤
│  1. POST /ca/initialize         → Create the CA                 │
│  2. Configure ssl.client-auth: NEED                             │
│  3. POST /ca/partner/XXX/generate  → Generate partner cert      │
│  4. GET /ca/certificate         → Distribute CA cert            │
└──────────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌──────────────────────────────────────────────────────────────────┐
│                         PESIT CLIENT                             │
├──────────────────────────────────────────────────────────────────┤
│  1. Retrieve the partner keystore (key + signed cert)           │
│     OR generate CSR and have it signed                          │
│  2. Import CA cert into truststore                              │
│  3. Configure the client with keystore + truststore             │
│  4. mTLS connection to server port 6502 (or TLS port 5001)     │
└──────────────────────────────────────────────────────────────────┘

REST API Security

Basic Authentication

pesitwizard:
  admin:
    username: admin
    password: ${ADMIN_PASSWORD}  # Via environment variable

Change the Admin Password

# Via environment variable
docker run -e PESIT_ADMIN_PASSWORD=NewPassword ...

HTTPS for the API

In production, place a reverse proxy (nginx, traefik) in front of the API:

server {
    listen 443 ssl;
    server_name pesitwizard-admin.mycompany.com;

    ssl_certificate /etc/ssl/certs/server.crt;
    ssl_certificate_key /etc/ssl/private/server.key;

    location / {
        proxy_pass http://pesitwizard-server:8080;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

Network Security

Firewall

Ports to open:

Port	Service	Access
6502	PeSIT	Partners only
5001	PeSIT TLS	Partners only
8080	REST API	Internal only

IP Whitelisting

Restrict PeSIT access to known IPs:

# Kubernetes NetworkPolicy
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: pesitwizard-server-policy
spec:
  podSelector:
    matchLabels:
      app: pesitwizard-server
  policyTypes:
  - Ingress
  ingress:
  - from:
    - ipBlock:
        cidr: 10.0.0.0/8  # Internal network
    - ipBlock:
        cidr: 203.0.113.0/24  # Bank IPs
    ports:
    - port: 6502
    - port: 5001

VPN

For sensitive exchanges, use a site-to-site VPN:

[Your network] ──VPN IPSec── [Bank network]
      │                            │
      ▼                            ▼
 PeSIT Wizard Client              PeSIT Wizard Server

Audit and Traceability

Access Logs

All access is logged:

2025-01-10 10:30:00 INFO  [CONNECT] Partner=BANK_XYZ IP=203.0.113.50 Status=SUCCESS
2025-01-10 10:30:01 INFO  [CREATE] Partner=BANK_XYZ File=PAYMENT.XML Status=SUCCESS
2025-01-10 10:30:05 INFO  [RELEASE] Partner=BANK_XYZ Duration=5s Bytes=15234

Log Retention

logging:
  file:
    name: /var/log/pesitwizard/pesitwizard-server.log
    max-size: 100MB
    max-history: 90  # 90 days

Export to SIEM

Configure Filebeat or Fluentd to send logs to your SIEM:

# filebeat.yml
filebeat.inputs:
- type: log
  paths:
    - /var/log/pesitwizard/*.log

output.elasticsearch:
  hosts: ["elasticsearch:9200"]
  index: "pesitwizard-logs-%{+yyyy.MM.dd}"

Security Checklist

• [ ] Complex partner passwords
• [ ] TLS enabled (PeSIT-E)
• [ ] Valid and non-expired certificates
• [ ] API protected by HTTPS
• [ ] Admin password changed
• [ ] Firewall configured
• [ ] IP whitelisting enabled
• [ ] Centralized logs
• [ ] Alerts configured
• [ ] Backups tested
